EX-SDI

To extend the transmission distance without image deterioration, enabling low-priced analog cables applicable to the surveillance and the automotive.

What is the EX-SDI?

EX-SDI_20190809.pdf
1658.2KB

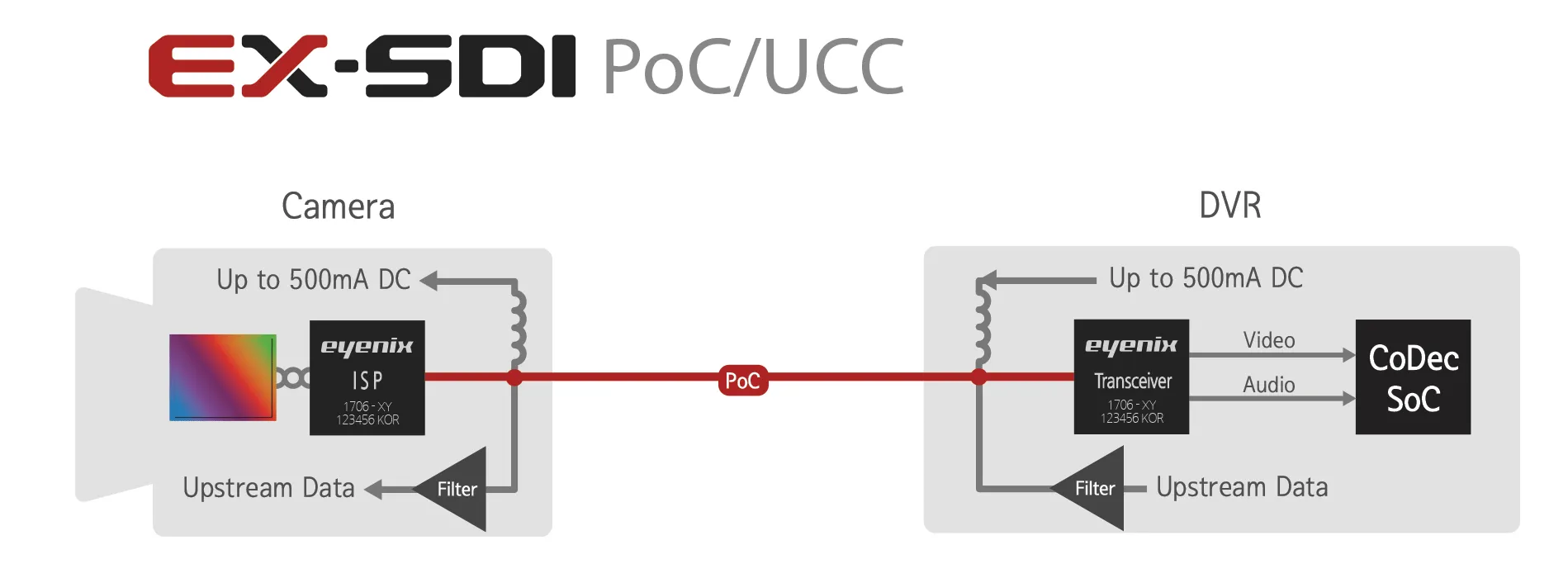

EX-SDI One Cable Solution (Power supply & Control over coax cable)

One Cable Solution provides camera power through coaxial cable, so installation of camera power supply is not necessary.
Also, DVR can transmit camera control data through same coaxial cable, so camera’s all OSD menu control is possible. For AF camera models, Zoom/Focus, One-push auto focus control can be additionally supported.
One Cable Solution provides easy installation at actual installation sites. And besides, because DVR or CMS can control camera, it support efficient management of video surveillance system at the same time.

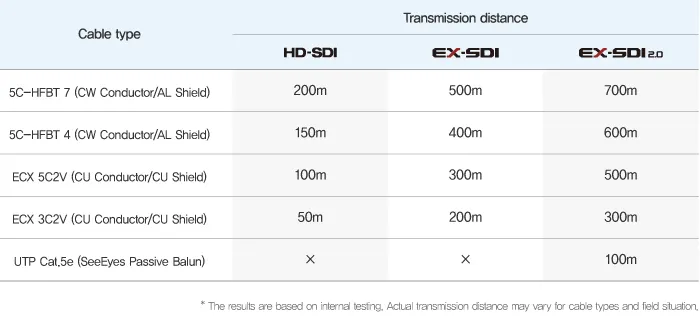

Transmission Distance by cable types

Source : Webgate_Homepage

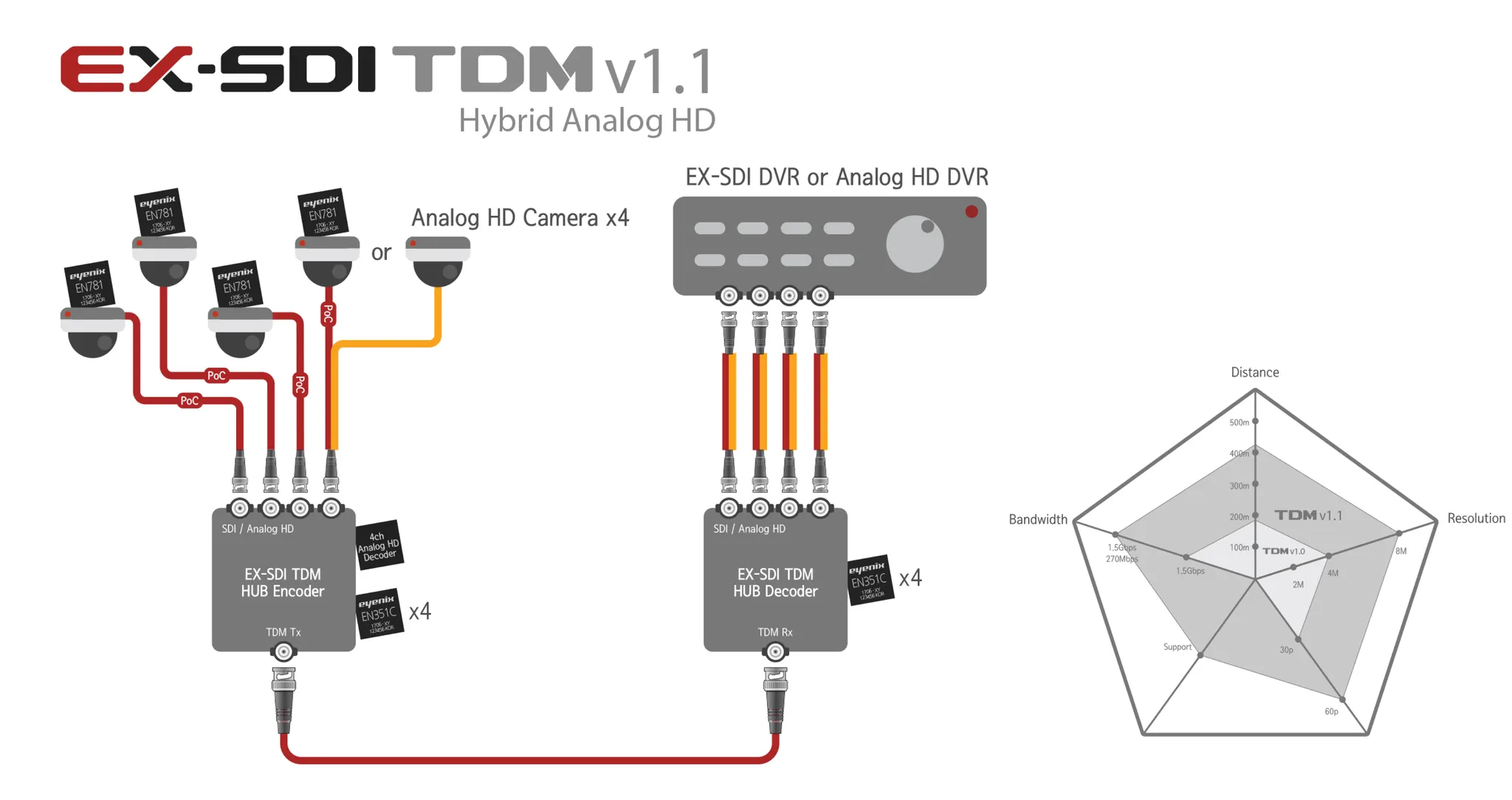

EX-SDI TDM

The EX-SDI TDM is a type of EX-SDI VLC technology that allows sending independent 8ch videos (including embedded audio) in a single coax cable. It includes Forward Error Correction(FEC) technology to prevent fatal error that can be caused while transmitting multiple channels. The EX-SDI TDM can multiplex up to four channels of 1080p60 or eight channels of 1080p30.

How EX-SDI differs from HD Analog CCTV (HD-TVI, HD-CVI, AHD)

Image Quality Comparison: EX-SDI vs. HD-CVI vs. HD-TVI vs. AHD

EX-SDI Products list

Device name
Type
Release year
ISP
2021
ISP
2021
ISP
2021
COUNT4
